WSMD0805貼片可恢復保險絲

  • 2022-12-30 17:41:18
  • 0

貼片自恢保險絲|  SMD PTC FUSE

貼片| SMD

型號 | model: WG0805




Specification Sheet

Terminal Pad Solderability:
Meets EIA Specification RS 186-9E And ANSI/J-STD-002 Category 3.
Terminal PAD Materials: Tin-Plated Nickel-copper
Lead-Free,RoHS Compliant
Marking:
R ROHS
1 010Part Identification

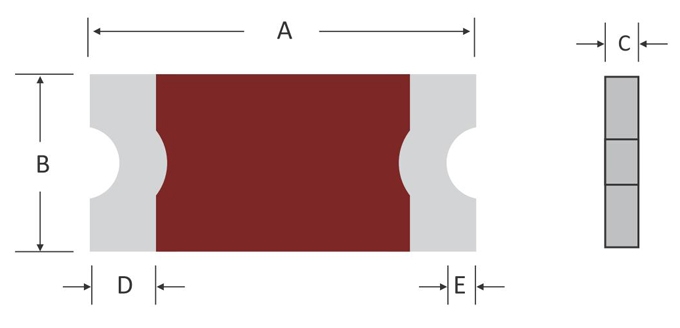

TABLEI.DIMENSIONS

MODEL A
B
C
D E
MIN MAX MIN MAX MIN MAX MIN MAX
WSMD0805R010SF 2.00 2.20 1.20 1.50 0.50 1.00 0.20 0.10
WSMD0805R020SF 2.00 2.20 1.20 1.50 0.45 1.00 0.20 0.10
WSMD0805R035SF 2.00 2.20 1.20 1.50 0.45 1.00 0.20 0.10
WSMD0805R050SF 2.00 2.20 1.20 1.50 0.30 0.60 0.20 0.10
WSMD0805R075SF 2.00 2.20 1.20 1.50 0.40 1.00 0.20 0.10
WSMD0805R100SF 2.00 2.20 1.20 1.50 0.50 1.10 0.20 0.10
WSMD0805R110SF 2.00 2.20 1.20 1.50 0.50 1.20 0.20 0.10
WSMD0805R125SF 2.00 2.20 1.20 1.50 0.50 1.20 0.20 0.10

Performance Specification

Model Mar
     King 		V Max
 I Max
 I Hold@25℃
 I Trip@25℃
 Pd Typ.
 Maximum Time      To Trip Resistance Agency Approval
(V DC) (A) (A) (A) (W) Current(A) Time(Sec) R1 Min(Ω) R1 Max(Ω) UL TUV
WSMD0805R010SF 1 15.0 100 0.10 0.30 0.5 0.5 1.00 1.000 6.000

WSMD0805R020SF 2 9.0 100 0.20 0.50 0.5 8.0 0.02 0.650 3.500

WSMD0805R035SF 3 6.0 100 0.35 0.75 0.5 8.0 0.10 0.250 1.200

WSMD0805R050SF 5 6.0 100 0.50 1.00 0.5 8.0 0.10 0.150 0.850

WSMD0805R075SF 7 6.0 40 0.75 1.50 0.6 8.0 0.20 0.090 0.385

WSMD0805R100SF 0 6.0 100 1.00 1.95 0.6 8.0 0.30 0.060 0.230

WSMD0805R110SF 0 6.0 100 1.10 2.20 0.6 8.0 0.30 0.060 0.210

WSMD0805R125SF 12 6.0 100 1.25 2.50 0.5 8.0 0.60
