WSMD1210貼片可恢復(fù)保險絲

  • 2022-12-28 16:21:38
  • 0

貼片自恢保險絲|  SMD PTC FUSE

貼片| SMD

型號 | model: WSMD1210


Specification Sheet

Terminal Pad Solderability:
Meets EIA Specification RS 186-9E And ANSI/J-STD-002 Category 3.
Terminal PAD Materials: Tin-Plated Nickel-copper
Lead-Free,RoHS Compliant
Marking:
R ROHS
1 010Part Identification

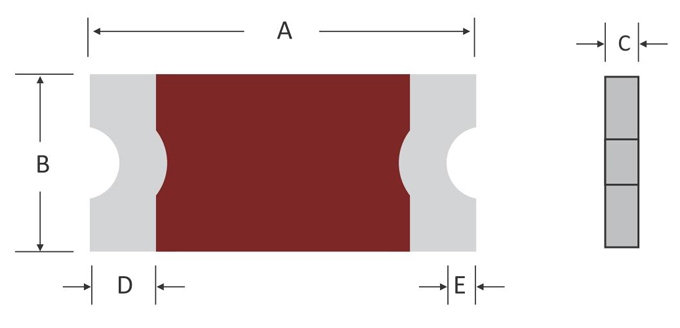

TABLEI.DIMENSIONS

MODEL A
B
C
D E
MIN MAX MIN MAX MIN MAX MIN MAX
WSMD1210R005SF 3.00 3.43 2.35 2.80 0.30 0.80 0.30 0.10
WSMD1210R010SF 3.00 3.43 2.35 2.80 0.30 0.80 0.30 0.10
WSMD1210R020SF 3.00 3.43 2.35 2.80 0.30 0.80 0.30 0.10
WSMD1210R035SF 3.00 3.43 2.35 2.80 0.30 0.80 0.30 0.10
WSMD1210R050SF 3.00 3.43 2.35 2.80 0.30 0.80 0.30 0.10
WSMD1210R075SF 3.00 3.43 2.35 2.80 0.30 0.80 0.30 0.10
WSMD1210R110SF 3.00 3.43 2.35 2.80 0.30 0.80 0.30 0.10
WSMD1210R150SF 3.00 3.43 2.35 2.80 0.40 0.80 0.30 0.10
WSMD1210R175SF 3.00 3.43 2.35 2.80 0.50 1.20 0.30 0.10
WSMD1210R200SF 3.00 3.43 2.35 2.80 0.50 1.20 0.30 0.10

Performance Specification

Model Mar
     King 		V Max
 I Max
 I Hold@25℃
 I Trip@25℃
 Pd Typ.
 Maximum Time      To Trip Resistance Agency Approval
(V DC) (A) (A) (A) (W) Current(A) Time(Sec) R1 Min(Ω) R1 Max(Ω) UL TUV
WSMD1210R005SF RA 30.0 100 0.05 0.15 0.4 0.25 1.50 2.800 50.000

WSMD1210R010SF R1 30.0 100 0.10 0.30 0.4 0.50 0.60 0.800 15.000

WSMD1210R020SF R2 30.0 100 0.20 0.40 0.4 8.0 0.02 0.400 5.000

WSMD1210R035SF R3 6.0 100 0.35 0.75 0.6 8.00 0.20 0.200 1.300

WSMD1210R050SF R5 13.2 100 0.50 1.10 0.6 8.00 0.10 0.180 0.900

WSMD1210R075SF R7 6.0 100 0.75 0.50 0.6 8.00 0.10 0.070 0.400

WSMD1210R110SF R0 6.0 100 1.10 2.20 0.6 8.00 0.30 0.050 0.210
