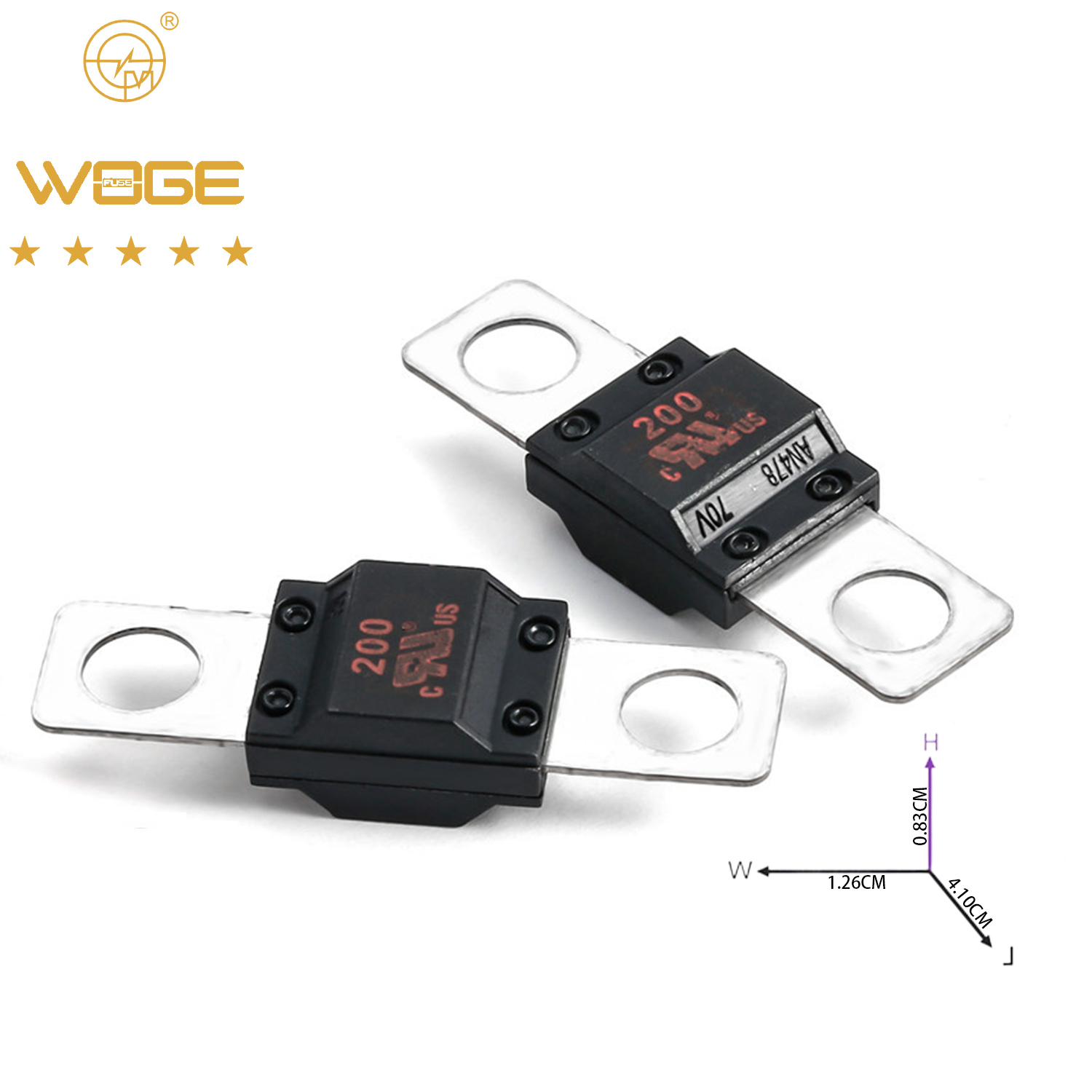

1. 螺栓保險絲|Bolt FUSE
2. 型號|model: AN478
3. 慢熔|Slow melting
4. 1.AN478保險絲為大電流接線提供了一種開關式的節省空間的保險絲保護器采用“擴散丸技術”提供延時特性
5. 1.The AN478 fuse offers a bilt-on space saving fuse for high current wiring protection ang provides time
6. delay characteristics with "Diffusion pill Technology

1. Ps：According to usage conditions, the characteristics of the fuse may change|根據使用狀況，保險絲特性可能改變！

1. 2.Note
2. Rated voltage: less than 72/125VDC
3. Breaking capacity: 2500A 72/125V DC
4. Operating temperature: -40 ℃~+125 ℃
5. Execution standard: UL 248-1
6. Material: copper alloy
7. Adapter fuse holder:AN4989-T,WGS04,CY-273B
   Adapt to PCB terminal:AN498-PCB01

8. 2.說明
9. 額定電壓：小于直流58V
10. 致斷容量：2500A/58V DC
11. 使用溫度：-40℃～+125℃
12. 執行標準：ISO8820-5
13. 材質：銅合金
14. 轉接保險絲座：AN4989-T，WGS04,CY-273B
    適用于PCB端子：AN498-PCB01


1. 3.The specifications and models of fuses are as follows|保險絲規格型號如

注notes：

@環保文件以附件發送，每年更新一次；

@Environmental protection documents shall be sent as attachments and updated once a year;

@安規證書附件發送；

@Attachment of safety regulation certificat
