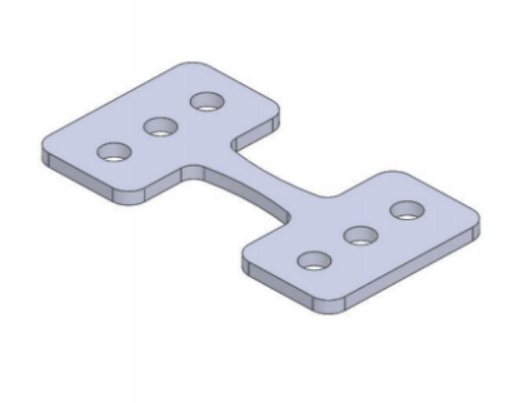

1. 螺栓保險絲|Bolt FUSE
2. 型號|model: ANMG
3. 慢熔|Slow melting
4. 安規認證|Safety certificatio
5. 1.AN491xxx保險絲設計用于高達150A的大電流電路保護,高分?jǐn)嗉夹g(shù)”。 AN491xxx熔斷器還提供延時特性。 AN491xxx保險絲是理想的電池以及交流發電機保護應用和其他需要超高電流的大規格電纜保護。
   1.The  AN491xxxFuse is designed for high current circuit protection up to 150A with “DiffusionPill Technology.”  AN491xxxFuse also provides time delay characteristics. the ANMZ Fuse is ideal for battery and alternator protection application and other heavy gauge cables requiring ultra-high current protection.
6.


1. Ps：According to usage conditions, the characteristics of the fuse may change|根據使用狀況，保險絲特性可能改變！

   2.Note
   Rated voltage: less than 60VDC
   Operating temperature: -40 ℃~+105 ℃
   Material: Zinc alloy
   2.說明
   額定電壓：小于直流60VDC
   使用溫度：-40℃～+105℃
2. 材質：鋅合金

3.

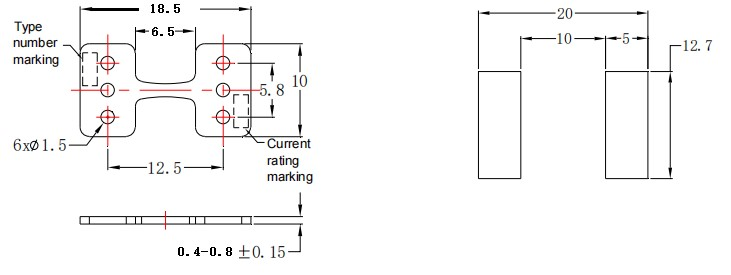

4. 3.The specifications and models of fuses are as follows|保險絲規格型號如下


注notes: @環保文件以附件發送，每年更新一次; @Environmental protection documents shall be sent as attachments and updated once a yea @安規證書附件發送 @Attachment of safety regulation certificate
