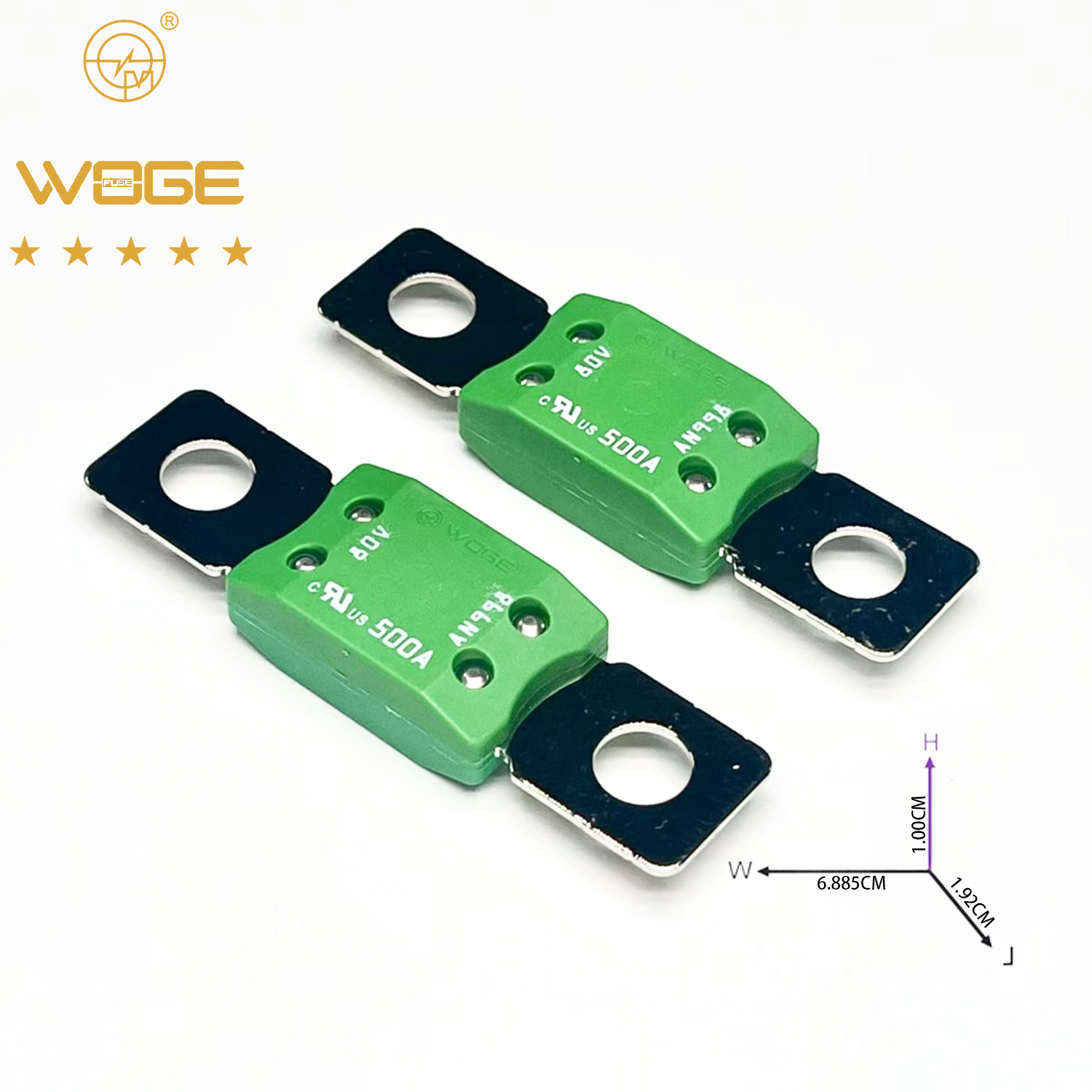

1. 螺栓保險絲|Bolt FUSE
2. 型號|model: AN998
3. 慢熔|Slow melting

1. 1.AN998熔斷器設計用于高達650A的大電流電路保護，采用“擴散丸技術”，AN998熔斷器還具有延時特性。an998保險絲是電池和交流發電機保護應用和其他需要超高電流保護的大規格電纜的理想選擇。

1. 1.The AN998Fuse is designed for high current circuit protection up to 650A with“DiffusionPill Technology," AN998 Fuse also provides time delay characteristics.the AN998Fuse is ideal for battery and alternator protection application and other heavy gauge cablesrequiring ultra high current protection.

Ps：According to usage conditions, the characteristics of the fuse may change|根據使用狀況，保險絲特性可能改變！

1. 2.Note
2. Rated voltage: less than 80VDC
3. Breaking capacity: 2500 amperes at 80 Vdc
4. Operating temperature: -40 ℃~+125 ℃
5. Execution standard: GB/T31465.5
6. Material: copper alloy
7. Recommended fuse holder: ANMZ-H01, ANMZ-H01A


1. 2.說明
2. 額定電壓：小于直流80VDC
3. 致斷容量：80vdc時5000安培/ 120vdc時2500安培

4. 使用溫度：-40℃～+125℃
5. 執行標準：GB/T31465.5
6. 材質：銅合金
7. 推薦使用保險絲座: ANMZ-H01, ANMZ-H01A
8.

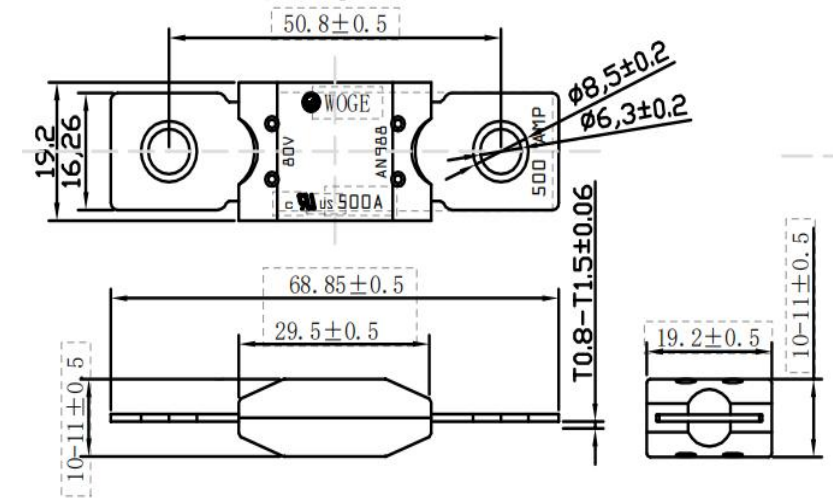

9. 3.The specifications and models of fuses are as follows|保險絲規格型號如

4.Fusing characteristics|熔斷特性

注notes:
@環保文件以附件發送，每年更新一次;

@Environmental protection documents shall be sent as attachments and updated once a yea

@安規證書附件發送

@Attachment of safety regulation certificate
